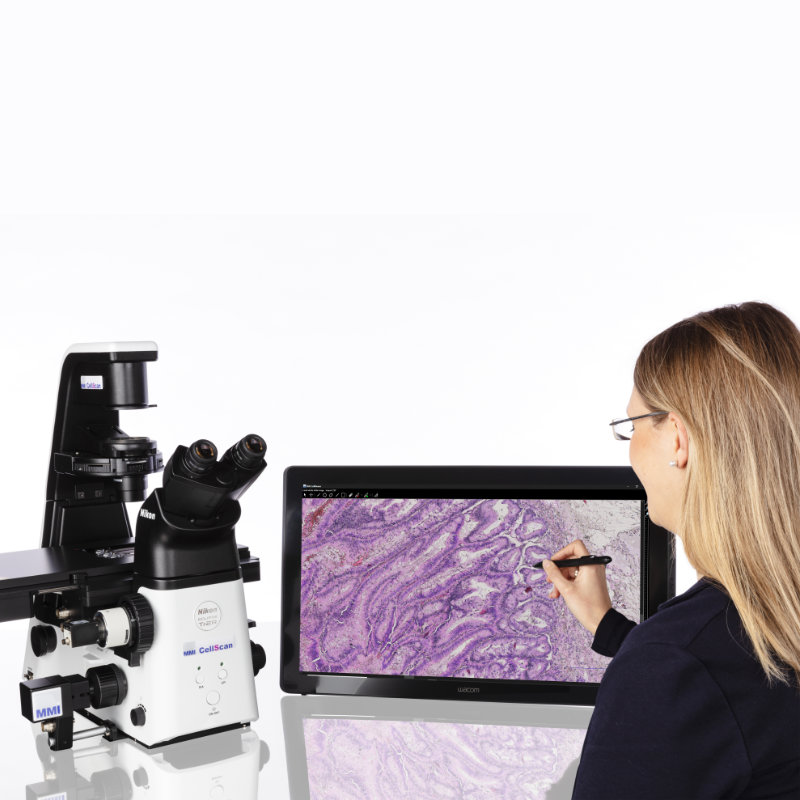

MMI CellScan
Most flexible whole slide imaging system on the market. Compatible across a wide range of research microscopes and any possible imaging mode. Maximizes the performance of your research or pathology services.
More information on the CellScan Product Page
Full resolution whole slide image
- 25mm x 75mm slide scan in less than 10min with 20x objective
- Stitching of a huge full-resolution overview image (BigTiff)
- TIFF file with full resolution layer and lower resolution layers for fast preview
- Full preservation of the position information
-
The stitched image will be stored on the drive and can be used for external image analysis
Fast motorized stage control with improved speed and acceleration
- Speed > 50mm/sec (for MMI stages with 2mm pitch screw)
- Acceleration 10x higher than with standard MMI Platform
Fast CMOS camera control for MMI CellCamera VCXU23c
- USB3 image transfer rate > 160fps (without visualisation)
- 10 min for full slide scan under 20x (guaranteed with VCXU23c and 2mm pitch screw MMI stage)
Single click scans
- Scan all configured slides with one single button click
Automated Focus Map
- Multi-position focusing map for precise motorized focusing during the scanning process, also for uneven samples can be created fully automatically
Full slide image Viewer
- Ultra-fast slide viewing with full-resolution images
- Draw your cutting areas directly into the full slide image
- Annotate fluorescence scans without bleaching
