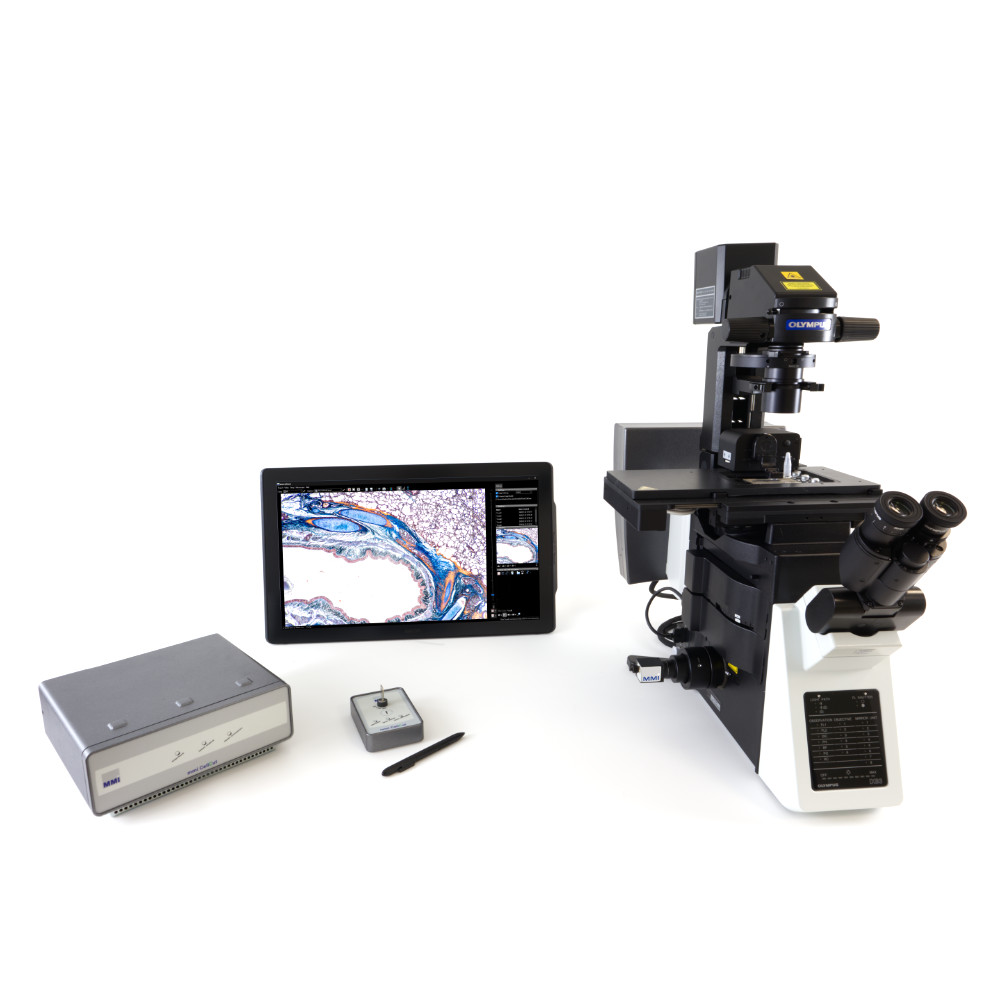

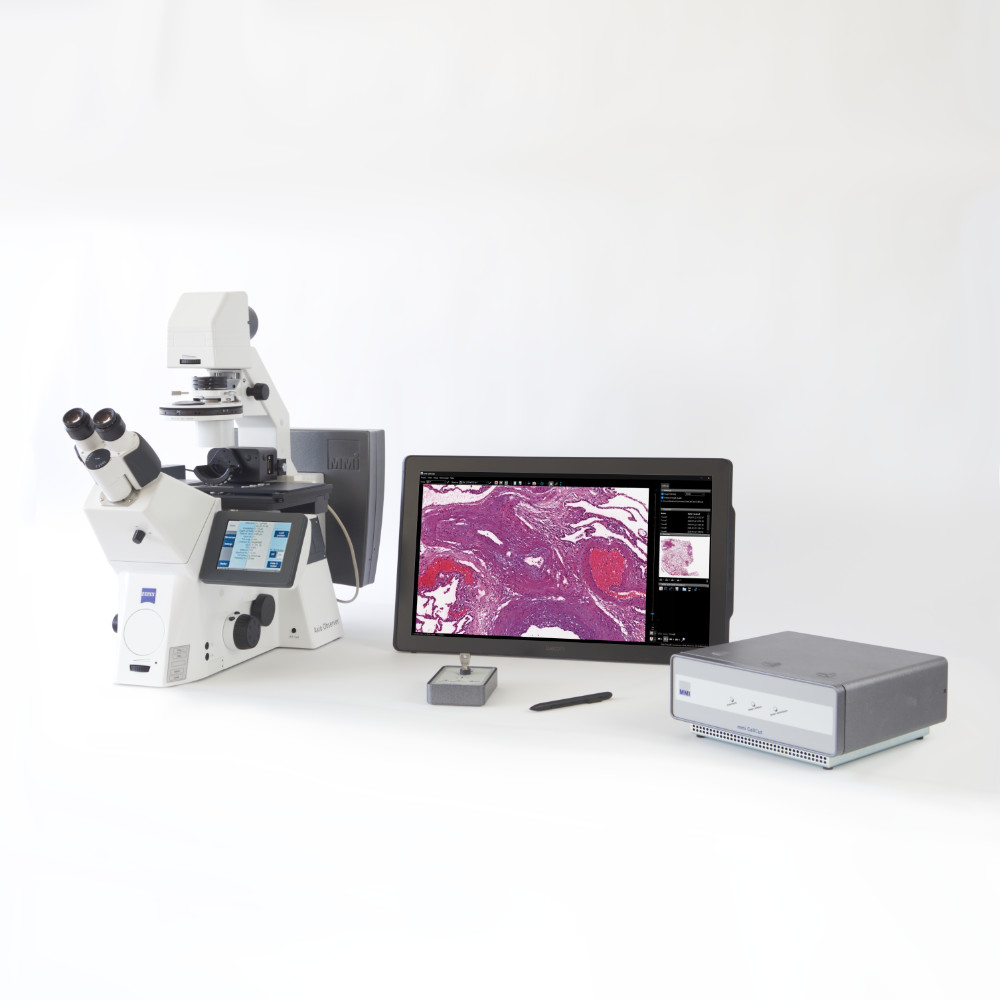

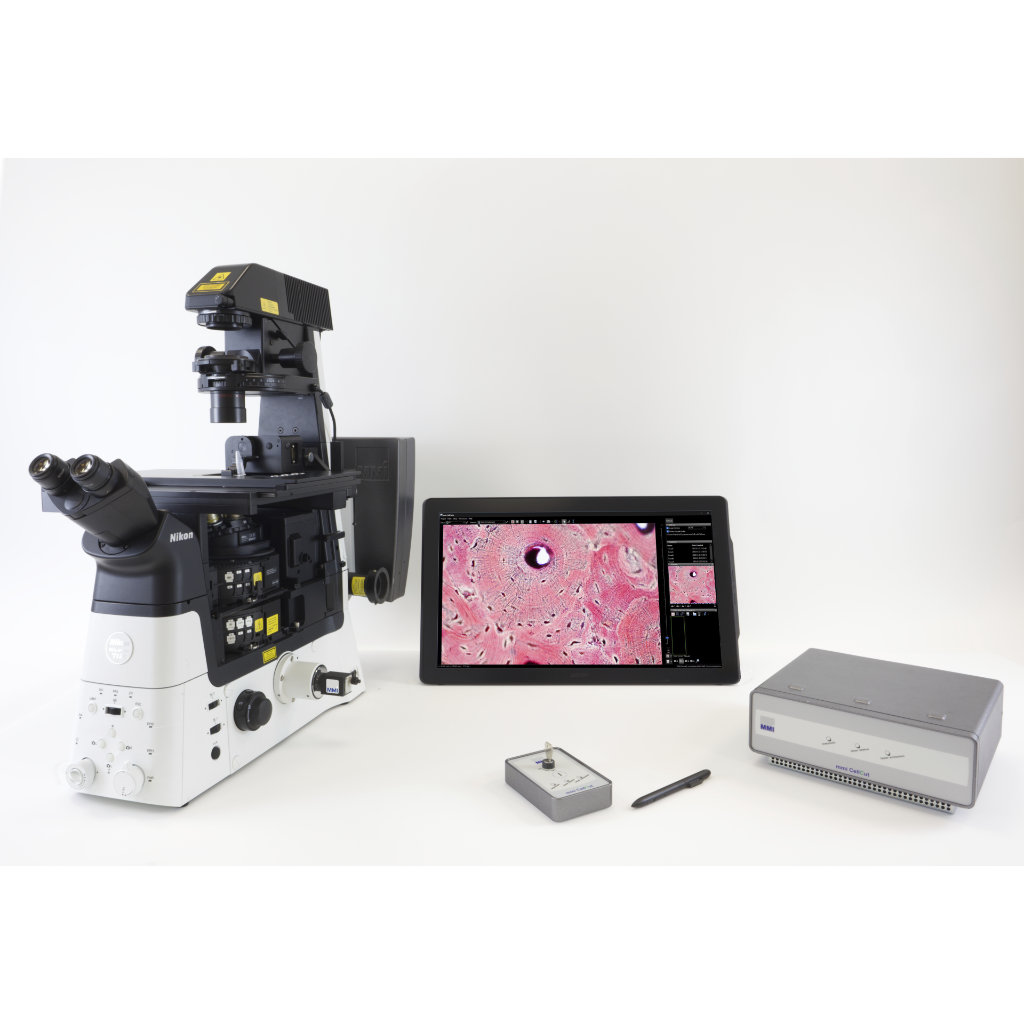

MMI CellCut High Power
Laser based Microdissection:
The MMI CellCut is the user-friendly laser microdissection tool to isolate groups of cells, single cells, and cell components for analysis across a wide range of applications.The CellCut is contamination free, reproducible and reliable and optimised for high quality and quantity DNA, RNA, Protein recovery.
For cutting extremly hard materials like plants, bone, bone marrow, teeth, forensic tapes etc.

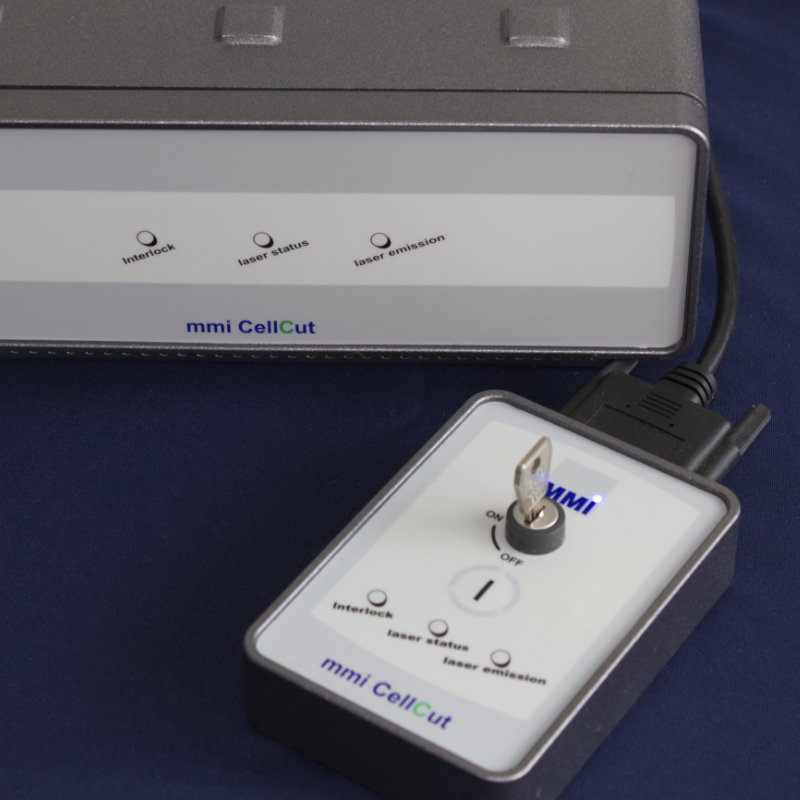

Solid state UV laser:
• Wavelength 343 nm
• Maintenance free
• Guaranteed life span 1 year or 2 Gigashot whatever comes first
• Extremely sharp focus via computer simulated optics
• Safety devices and eye protection filters
• Laser technology: Actively Q-switched
• Pulse duration < 1,3ns
• Pulse energy > 100μJ
• Pulse frequency up to 500Hz
• Max power = 50mW

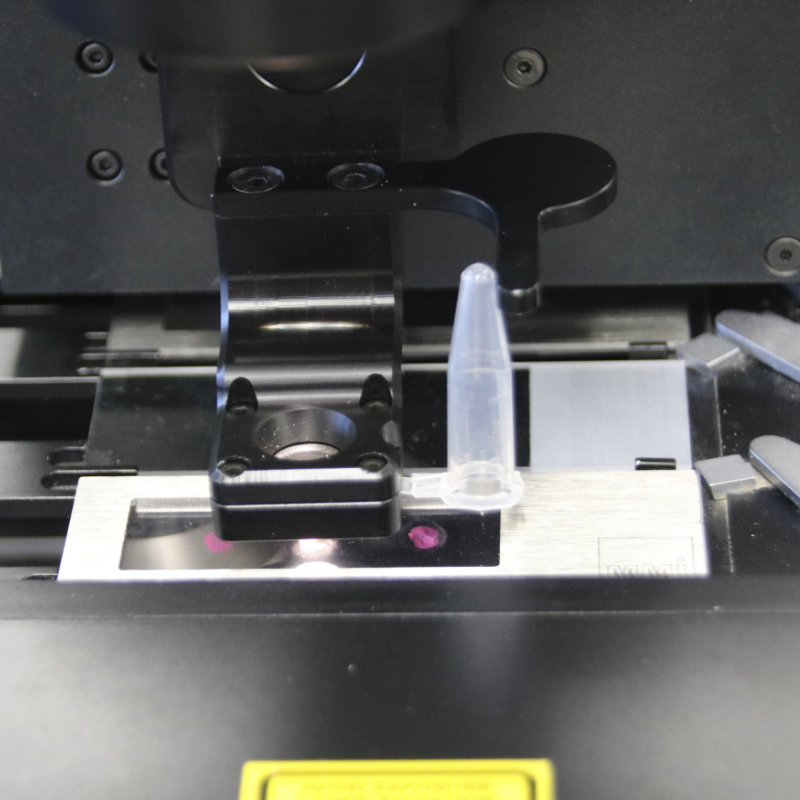

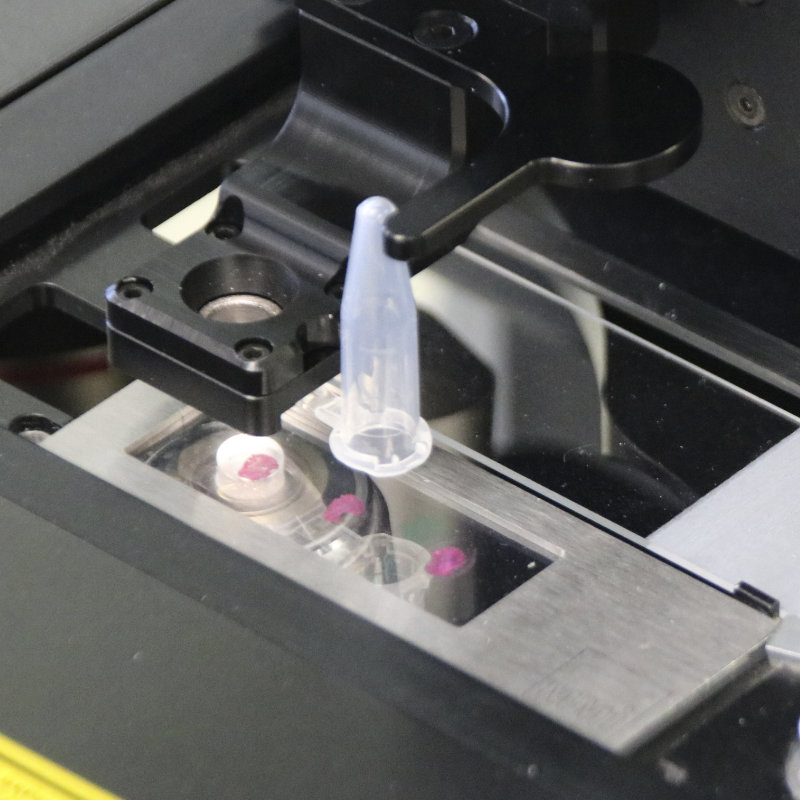

MMI Isolation Cap & MMI Single CapLift
• Patented, contamination free method for isolation of microdissected areas using adhesive cap technology with pre-defined target positioning (PTP) and positive sample inspection
• Software controlled positioning, lifting and lowering of adhesive cap
• Removable Plug & play module for full access to the microscope stage
• Adjustable contact pressure between cap and slide
• 3 cap holders with magnetic mount for 0.2ml, 0.5ml and 1.5ml
MMI CellCut software functions
• Computer controlled laser power, focus position and cutting speed
• Free-hand drawing or predefined figures: circles, squares, ellipses
• Multi-segment drawing for objects larger than the field of view
• Automatic cutting of marked areas and collecting of dissected samples, including multi cutting option
• Group cutting functions incl. group statistics
• Automatic documentation with immediate access to report
• Serial section function: allows the marking of target regions onto one or more unstained sections by using a stained top section as a template. Differences in shape, angle and position are automatically compensated by the software giving highly accurate results.
• Z-Drill function: Cutting of wet and thick tissue without the need for increased laser power. The laser is refocused through the sample and so facilitates cutting in a spiral.
MMI Consumables Starter Kit CellCut
• Various MMI Caps, MMI Slides and MMI Consumables for first use
The MMI CellCut Universal is a user-friendly laser microdissection tool to isolate groups of cells, single cells, and cell components for analysis across a wide range of applications. The CellCut is contamination-free, reproducible and reliable and optimized for high-quality and quantity DNA, RNA, protein recovery.
More information on the CellCut Product Page
High Power Laser:
- For cutting very hard material such as teeth, bones or forensic tapes
- Wavelength 349 nm
- Maintenance free
- Extremely sharp focus due to computer-simulated optics
- Safety devices and eye protection filters
Laser technology:
- Actively Q-switched
- Pulse duration <500ps
- Pulse energy >2µJ
- Pulse frequency up to 4kHz MMI Isolation
Cap & MMI Single CapLift
- Patented, contamination-free method for isolation of microdissected areas using adhesive cap technology with pre-defined target positioning (PTP) and positive sample inspection
- Software-controlled positioning, lifting and lowering of adhesive cap
- Removable Plug & play module for full access to the microscope stage
- Adjustable contact pressure between cap and slide
-
3 cap holders with magnetic mount for 0.2ml, 0.5ml and 1.5ml MMI
CellCut software functions
- Computer-controlled laser power, focus position and cutting speed
- Free-hand drawing or predefined figures: circles, squares, ellipses
- Multi-segment drawing for objects larger than the field of view
- Automatic cutting of marked areas and collecting of dissected samples, including multi-cutting option
- Group cutting functions incl. group statistics
- Automatic documentation with immediate access to report • Serial section function: allows the marking of target regions onto one or more unstained sections by using a stained top section as a template. Differences in shape, angle and position are automatically compensated by the software giving highly accurate results.
- Z-Drill function: Cutting of wet and thick tissue without the need for increased laser power. The laser is refocused through the sample and so facilitates cutting in a spiral.
